Heavy Vehicles Grade Control Systems Providing Accurate Results

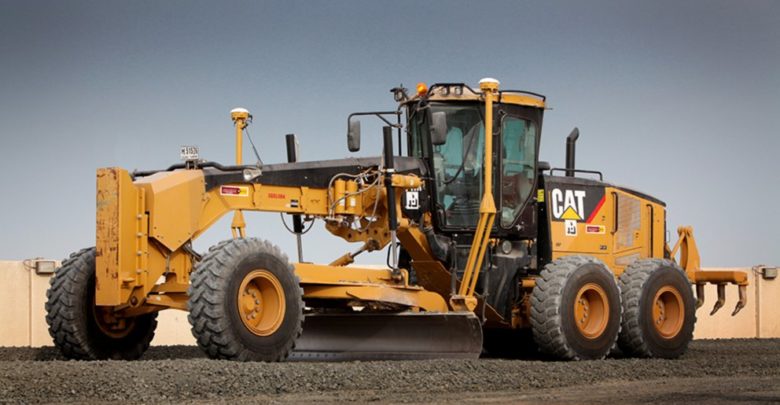

Recently, grade control systems for motor graders, crawler dozers and excavators have transformed construction. This latest technology enhances grading precision and job effectiveness by merging digital design data with in-cab leadership features.

However, this revolution is not coming inexpensive, it’s assessed that using of a grade control system can enhance efficiency by up to 40 percent. It might also considerably decrease material, equipment and labor costs.

Grade control systems

2D and 3D machine supervision systems are in-cab technology created for reasonable grading work. These classy systems use devices, lasers, and tellers to enhance the efficacy, precision, and output of motor graders, earthmovers and sycophant dozers.

The selection of a 2D or 3D grade control system mainly depends on the nature of the job-site. As grade control systems are constructed to be comprehensible and are easy to upgrade, operators can first explain themselves with a 2D system in groundwork for the upgrade to a 3D grade control system.

2D grade control systems

A 2D grade control system provides the operator the specific upright management required to get tight acceptances and a fine finished grade on a particular plane (either flat or a little sloping surface).

The system makes use of lasers, angle sensors and rotational devices to gauge the lift, slope and cross slope of either side of the knife-edge, and utilizes a laser mouthpiece for elevation switch. This makes sure 3-5 mm vertical precisions and almost eliminates the need for physical orientations (such as stakes).

3D grade control systems

A 3D grade control system makes use of an elevation directs fixed around the job site to grade vales, channels, and outlines more precisely and resourcefully. The system makes use of design data overloaded against the machines aboard computer and simultaneous GPS signs to estimate a precise innovative position.

The system then links this data to the contribution design altitudes to show cut-and-fill info. This means that the machinist will utilize precise design data, before possibly damaged orientation points to do the job.

Thus, the machine operator can do a job without management and site design acquaintance. The system is attuned with 3D design files from a wide-ranging of design complements.

Apart from showing several views of the several design aims layers, a 3D system also records data on the development and superiority of the grade or diggings and can communicate live point data, machine diagnostics, and job site evolution to an office computer.

Major benefits of grade control systems

Enhanced precision

Grade control systems estimate more precise evaluations and offer excellent grading precision. This eradicates grading faults and lessens the number of licenses requisite.

Enhanced productivity

Grade control systems eradicate the requirement for on-site position points. Consequently, the operator does not require leaving the cab to position or repositioning situations that enable the jobs to be done more professionally.

Diminished material and equipment costs

A grade control system will make payment for itself over time by offering better precision and savings on materials and equipment.

For instance, assembling a site for development without grade control needs two dozers, two articulated dump trucks, one excavator and one tractor. However, with grade control, free-lancers only need one-grade control-enabled dozer, two articulated dump trucks, one excavator and one tractor.

Decreased labor cost

When grade control systems are utilized, smaller numbers of individuals are required on the ground. For instance, without grade control, a cut-and-fill mission typically needs one laborer and six operators. With grade control, the job needs without laborer and, averagely, only five operators.

Furthermore, the usage of a grade control system eliminates the requirement for a third-party inspector – the technology implements this person’s function.

Enhanced site protection

All things considered, having very few people on the ground enhances the security of a job site.

Reduced requisite for highly experienced operators

With the usage of a grade control system, machinists do not require the same level of expertise as when operating equipment without grade control. Hence, grade control lets less-skilled operators implement the tasks of highly accomplished operators.
